OVERVIEW OF THE F-106 DELTA DART
The Convair F-106 Delta Dart was a supersonic,
all-weather delta wing interceptor aircraft of the United States Air Force from the 1960s through 1988. Referred to as the "Ultimate Interceptor" it was the last dedicated

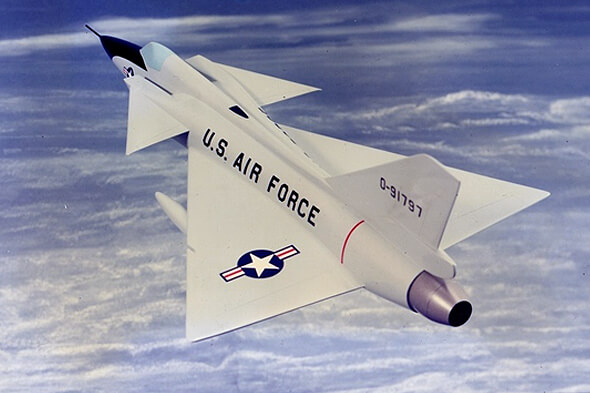

interceptor in USAF to date. Originally envisioned as an advanced derivative of the F-102A Delta Dagger and given the designation F-102B, the "Ultimate Interceptor", as it was known, entailed such extensive changes
that in June, 1956, the designation was changed to F-106. It was designed from the ground up as an Interceptor and nothing but an interceptor. Originally designated the F-102B, it was re-designated the F-106 due to
it's extensive structural changes and the more powerful Pratt & Whitney J75 engine. The single seat F-106A first flew on December 26, 1956, was delivered to and entered operational service with the US Air Force
(USAF) in May 1959 and achieved initial operational capability in October, 1959. The two-seat F-106B made its maiden flight on April 9, 1958, achieved initial operational capability in July 1960, and retained the
full combat capability of the F-106A. All F-106 production ended in late 1960 with a total of 277 F-106A's and 63 F-106B's being built at a cost of about $5 million each.
The F-106 Delta Dart was manufactured by the Convair Division of General Dynamics. It's design, and that of its predecessor the F-102A, is closely linked to Langley and the development of "area ruling" (Area Rule) in
the early 1950's. Area Rule reduces drag at transonic speeds and is reflected in the "coke bottle" or "wasp waist" shaped fuselage of the F-106. Area ruling enabled the YF-102A to easily exceed the speed of sound
and subsequently led to the go-ahead for the advanced version which became the F-106. The significance of area ruling was recognized by the National Aeronautic Association which awarded the originator,
Richard T. Whitcomb,
its prestigious Collier Trophy for the greatest achievement in aeronautics in 1955. It was powered by a single Pratt and Whitney J75-P-17 turbojet engine of 16,100 LB thrust (24,500 LB thrust with afterburning).

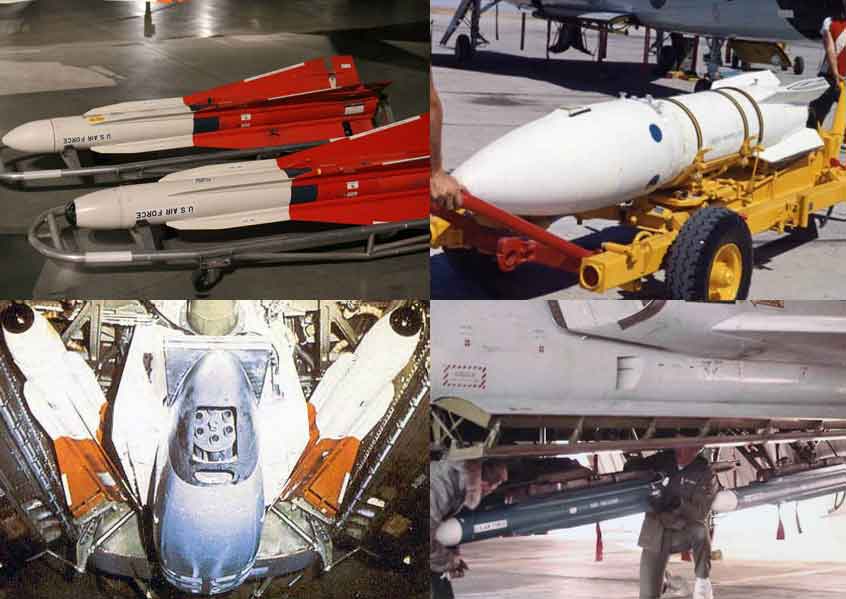

Developed as an interceptor, its mission was to shoot down other aircraft, bombers in particular. It used a Hughes MA-1 electronic guidance and fire control system. As quoted to me in an e-mail by Dick Stultz,
LtCol, USAF (Ret) who was an F-106 Pilot and who "Fired simulated AIR2A in William Tell Competition without Operational MA-1", "The MA-1 NEVER had full control of the aircraft, a capability so many publications
erroneously extol. The MA-1, using its data link target information or command information, would provide directives for altitude, airspeed, xyz coordinates and command directions, which would be flown by the
autopilot, however, the MA-1 NEVER regulated the throttle at any time, for forward and aft movement, thus the MA-1 could never really fully control the airplane except to provide requested directions that required
thrust selection by the pilot. The pilot HAD to take it off, climb, descend, and land the aircraft, every time!" The F-106 proved its ultimate performance capabilities in providing aggressor "enemy" delta-wing
familiarization training to the Navy's best pilots during the time they were implementing TOP GUN. The Navy jocks learned valuable lessons that the Delta winged 106 was almost unconquerable in the dogfight arena,
with guns in the air-to-air environment, which you read so little about in the Navy publications. Wing loading of 43 lbs/sq ft and a .8 -1 TWT put it in a class of its own against the A4s, F-104s, F4B,C,D, F-105,
fighters of its time.....not to mention the many many '14s and '15s that blew engines in attempting to fight when it took them above 40,000 feet, to a guns-only environment. Good thing they finally fixed those great
fighters to handle the altitudes the 106s formerly ruled.
The F-106 also came in a 2 seat "B". Unlike other popular 2 seat aircraft, such as the F-4, the back seater in the "SIX" had the exact same control capability as the front seater. He could fly the aircraft and
all operations from his rear seat. The F-106B also could carry the same armament.
On December 15, 1959, Colonel Joe Rogers piloted an F-106A to a World Speed Record of 1,525.695 mph (Mach 2.41). The F-106 still holds the record as the fastest single-engine turbojet-powered airplane.
The F-106 served with the USAF Air Defense Command (ADC), Tactical Air Command (TAC), and Air National Guard (ANG). The Air Force gradually retired the aircraft from active service after a long and distinguished

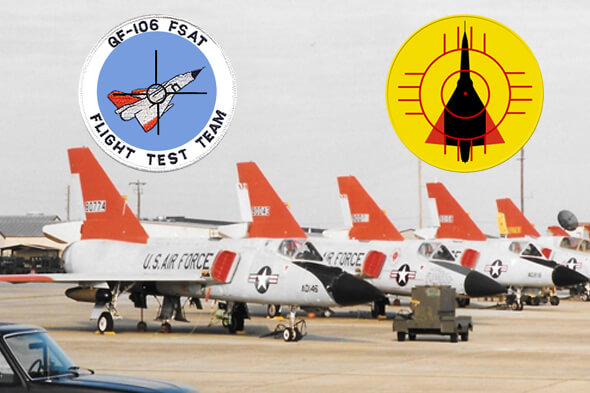

during the 1980s, last unit in 1988. The post Delta Dart period saw them used as drone targets during air-to-air missile training for our current generation of fighter aircraftThe with the QF-106 drone conversions

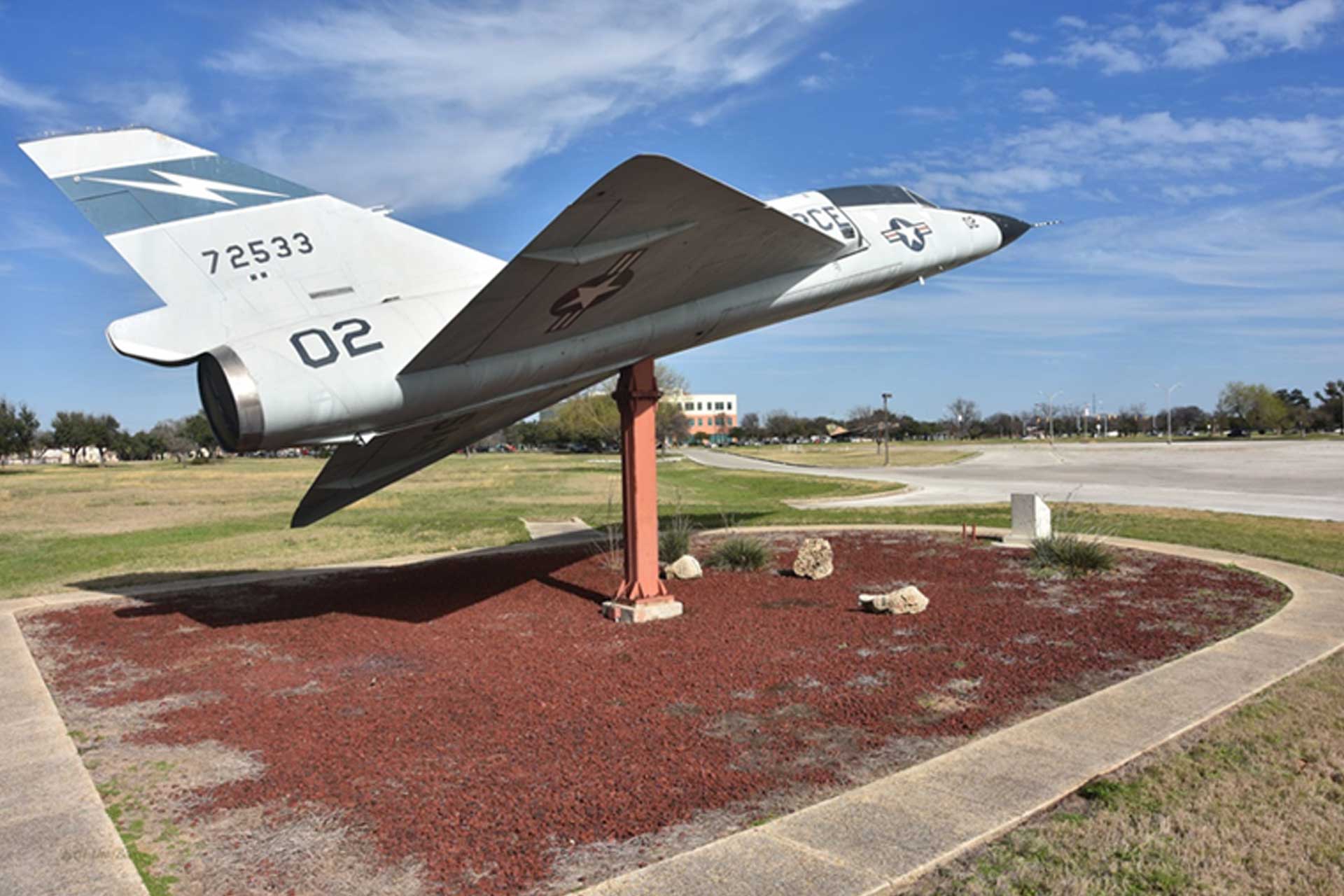

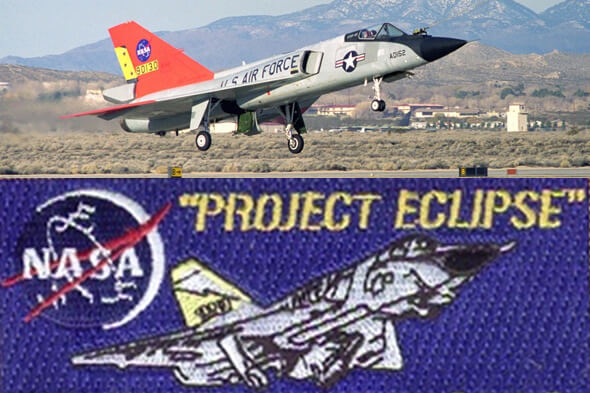

being used until 1998 under the Pacer Six Program. The Six also saw continued use with many NASA projects. While there are no flyable F-106's remaining, all survivors have been de-milled with most survivors on static
display in museums and parks.
WHAT IS A 'CENTURY SERIES FIGHTER'?

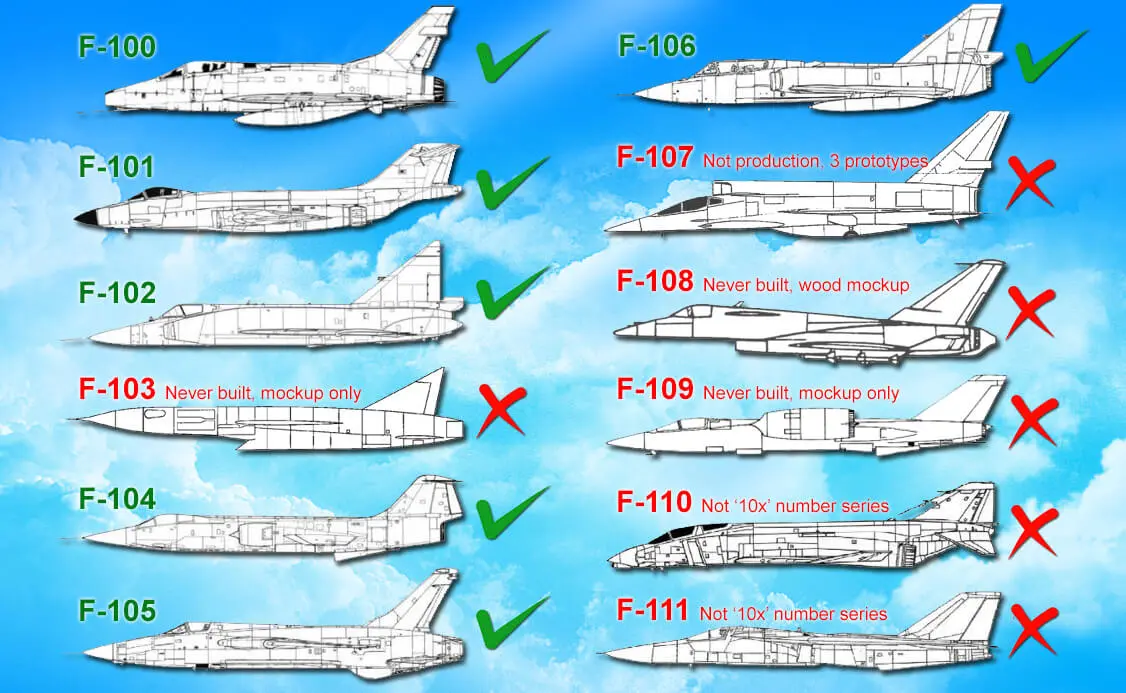

The Century Series fighters are a group of 6 US production fighter jets that were numbered F-100, F-101, F-102, F-104, F-105 and F-106. Although these were considered "2nd Generation" fighters,
sharing common technology, the basis for this club was actually the "hundreds" numbering. With that said, the 2nd generation was not limited to just the Century Series aircraft.
The 2nd Generation generally spans an era from the mid-1950's to the mid-1960's that military fighter jets made a leap in technical advancements including engine design, aerodynamics, metallurgy,
electronics and weapons systems. Although there is not a specific outline, 2nd generation aircraft generally could maintain speeds over Mach 1 in level flight. Swept wings became the norm and delta wings
came into play with their Area Rule 'coke bottle' shaped fuselages reducing drag. Traditional guns became uncommon and were replaced by air-to-air missiles, some with nuclear tips.
