F-106 Cockpit, Integrated Flight Instrument System

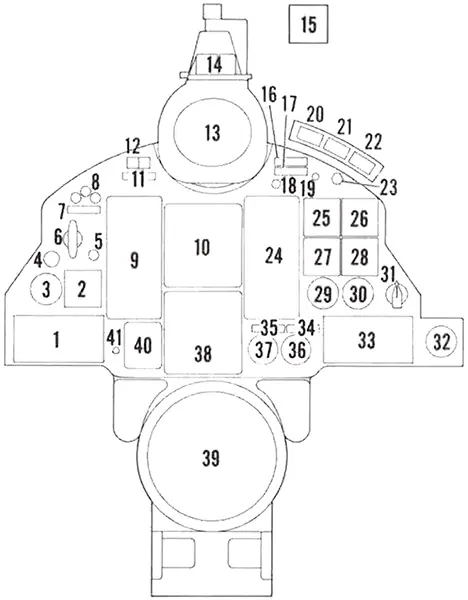

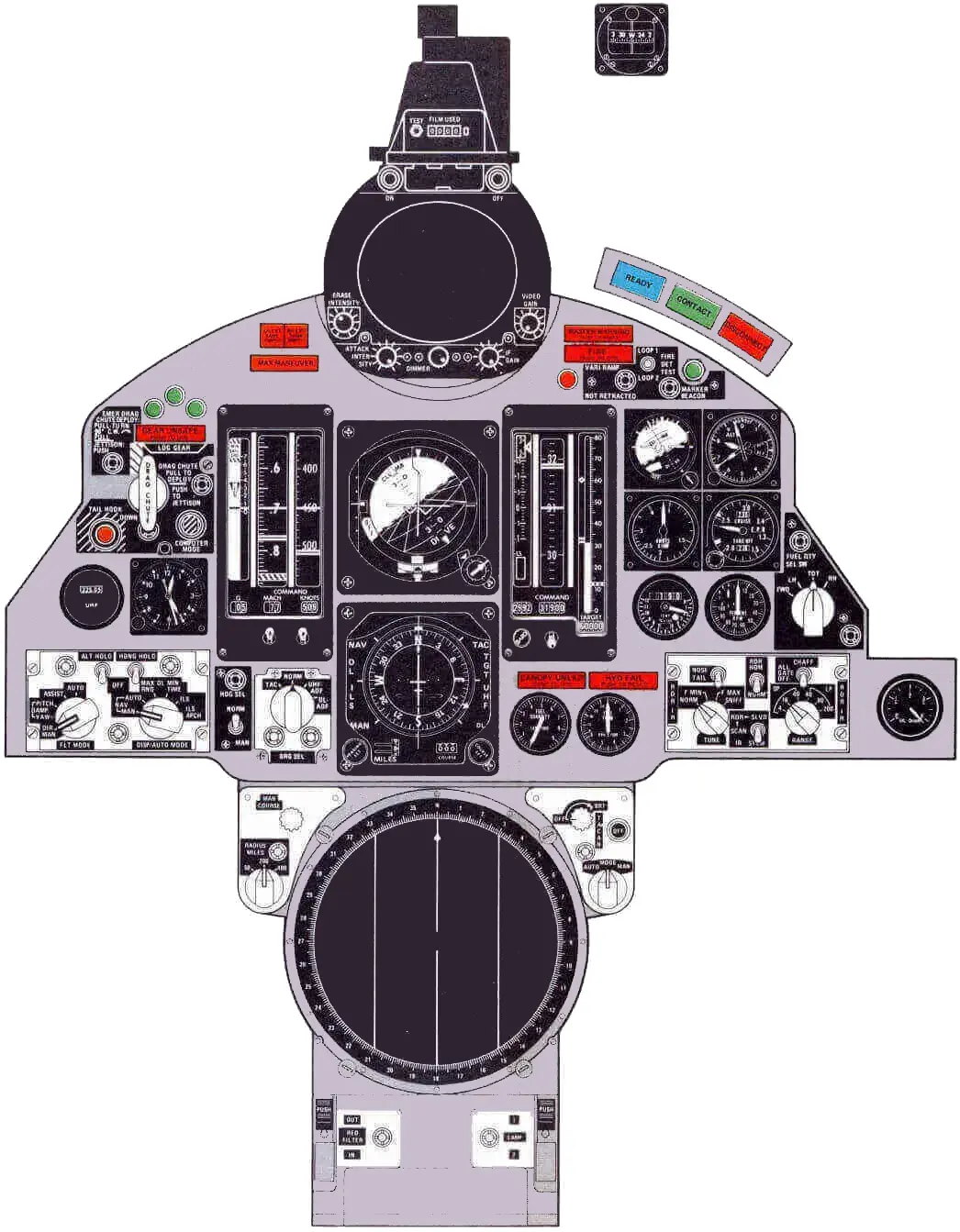

Forward Console
  1. Flight Modes Panel
  2. Clock
  3. UHF Remote Indicator
  4. Tail Hook Down Button And Light
  5. Computer Mode Indicator
  6. Drag Chute Handle
  7. Landing Gear Warning Light
  8. Landing Gear Position Lights
  9. Airspeed-Mach Indicator (AMI)
  10. Attitude Director Indicator (ADI)
  11. Maximum Maneuver Warning Light
  12. External Tank Empty Lights
  13. Radar Scope
  14. Radar Scope Recorder
  15. Standby Compass
  16. Master Warning Light
  17. Engine Fire Warning Light
  18. Variable Ramp Warning Light
  19. Engine Fire Warning Test Switch
  20. Air Refueling Ready Light
  21. Air Refueling Contact Light
  22. Air Refueling Disconnect Light
  23. Marker Beacon Light
  24. Altitude-Vertical Velocity Indicator (AVVI)
  25. Standby Attitude Indicator
  26. Standby Altimeter
  27. Standby Airspeed Indicator
  28. Engine Pressure Ratio Gage
  29. Exhaust Gas Temperature Gage
  30. Tachometer
  31. Fuel Quantity Gage Selector Switch
  32. Nucleonic Oil Quantity Indicator
  33. Radar/IR Selector Panel
  34. Hydraulic Pressure-Low Warning Light
  35. Canopy Unlocked Warning Light
  36. Fuel Flow Indicator
  37. Fuel Quantity Gage
  38. Horizontal Situation Indicator (HSI)
  39. Tactical Situation Display (TSD)
  40. Bearing Selector Switch
  41. Heading Selector Switch

Instruments [Tom Denton collection]

ADI
Attitude Director Indicator



AMI
Airspeed Mach Indicator


AVVI
Attitude Vertical Velocity Indicator

Gun Site

Control Stick

Master Warning Lights panel

Throttle Quadrant

HSI
Horizontal Situation Indicator

TSD
Tactical Situation Display

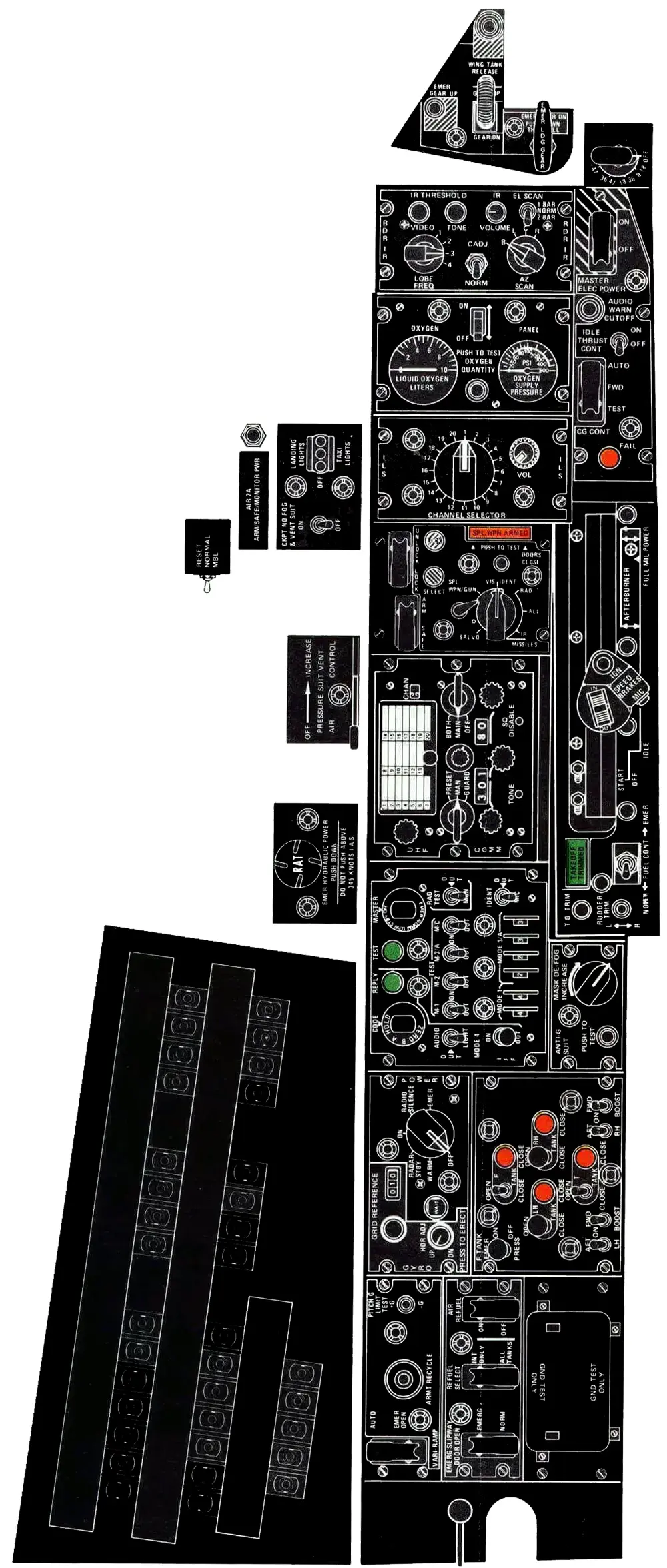

Left Console

Super Large View (1150x2700 580kb)

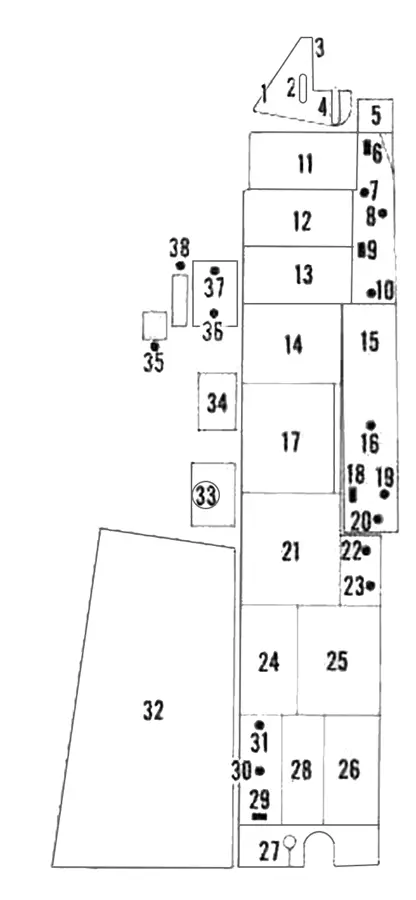

Left Console

  1. Landing Gear Emergency Up Button
  2. Landing Gear Handle
  3. External Wing Tanks Release Button
  4. Landing Gear Emergency Extension Handle
  5. Altitude Band Switch
  6. Master Electrical Power Switch
  7. Landing Gear Audio Warning Cutoff Button
  8. Idle Thrust Control Switch
  9. CG Control Switch
  10. CG Transfer Test Failure Light
  11. Radar/IR Control Panel
  12. Oxygen Control Panel
  13. ILS Channel Selector Panel
  14. Armament Control Panel
  15. Throttle Quadrant
  16. Throttle
  17. Communications Frequency Selector Panel (UHF)
  18. Takeoff Trim Light
  19. Fuel Control Switch
  20. Rudder Trim Switch
  21. IFF Control Panel
  22. Mask Defog Rheostat
  23. Anti-G Suit Test Button
  24. MA-1 Power Control Panel
  25. Fuel Control Panel
  26. MA-1 Test Panel
  27. Cabin Air Selector Handle
  28. Air Refueling Panel
  29. Variable Ramp Switch
  30. Armament Recycle Button
  31. Pitch G Limit Test Switch
  32. Cockpit Left Fuse Panel
  33. Ram Air Turbine (RAT) Handle
  34. Pressure Suit Control Handle
  35. Reset/MBL Switch
  36. Cockpit No-Fog & Ventilated Suit Switch
  37. Landing and Taxi Light Switch
  38. AIR-2A Arm/Safe/Monitor Power Circuit Breaker

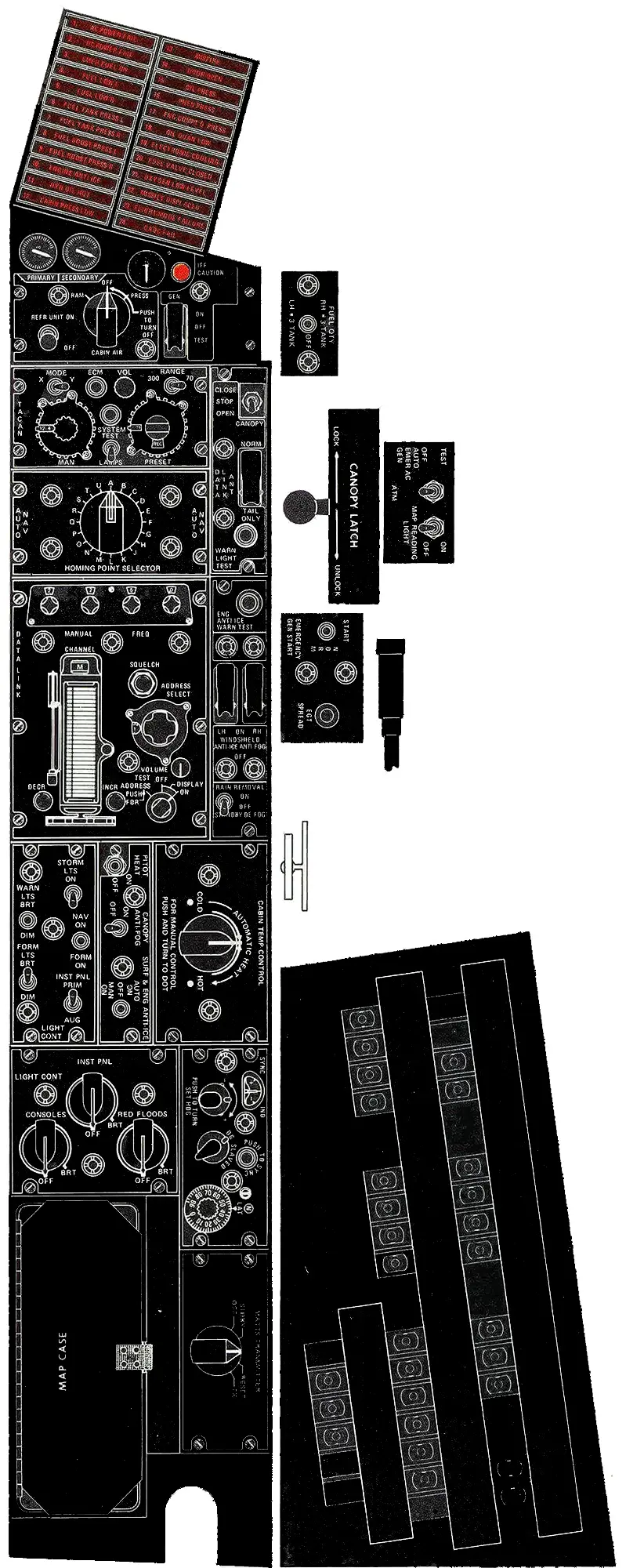

Right Console

Super Large View (1085x2720 620kb)

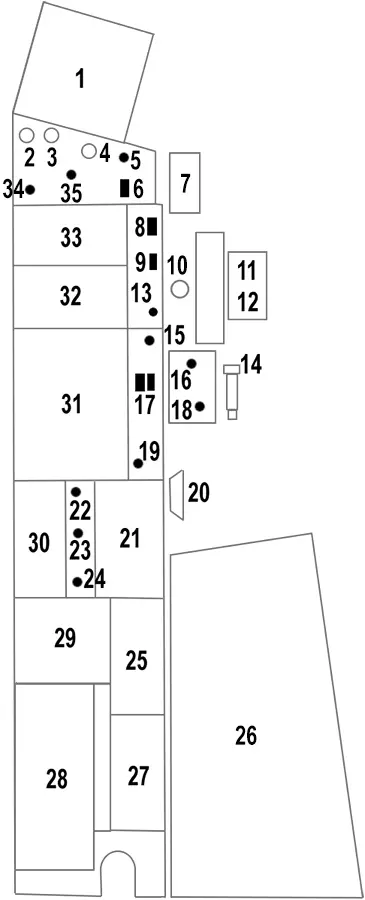

Right Console

  1. Master Warning Light Panel
  2. Primary Hydraulic System Pressure Gage
  3. Secondary Hydraulic System Pressure Gage
  4. Oil Pressure Gage
  5. IFF Caution Light
  6. Generator Switch
  7. No. 3 Fuel Tank Switch
  8. Canopy Switch
  9. Data Link Antenna Switch
  10. Canopy Latch Handle
  11. ATG Switch
  12. Map Reading Light Switch
  13. Warning Lights Test Button
  14. Map Reading Light
  15. Engine Anti-Ice Warning Test Button
  16. Emergency AC Generator Switch
  17. Windshield Anti-Icing, Antifog Switches
  18. EGT Spread Button
  19. Rain Removal Switch
  20. Ejection Seat Ground Safety Pin Stowage
  21. Cabin Temperature Control Knob
  22. Pitot Heat Switch
  23. Canopy Antifog Switch
  24. Surface and Engine Anti-Icing Switch
  25. Compass Control Panel
  26. Cockpit Right Fuse Panel
  27. MATTS Switch
  28. Map and Data Case
  29. Lighting Control Powerstats
  30. Lighting Control Panel
  31. Data Link Control Panel
  32. Auto-Navigation Homing Point Selector
  33. TACAN Control Panel
  34. Refrigeration Unit Switch
  35. Cabin Air Selector Switch


Cockpit w/round eye, Multi  Mode Storage Tube (MMST) radar scope hood

962 (Pre-MMST) vertical instruments, showing first generation radar scope with the hood (125 unit removed)

From Military Factory.com B model cockpit shots by Mark McKenzie Apr 2003
Cockpit from Eclipse Tow Acft


New Pressure Suit testing
Integrated Flight Instrument Display
QF-106 Manned configured cockpit [ARC Forums collection] QF-106 Unmanned NOLO configured [ARC Forums collection]

58-0086 at an undated Open House [ARC Forums collection]
